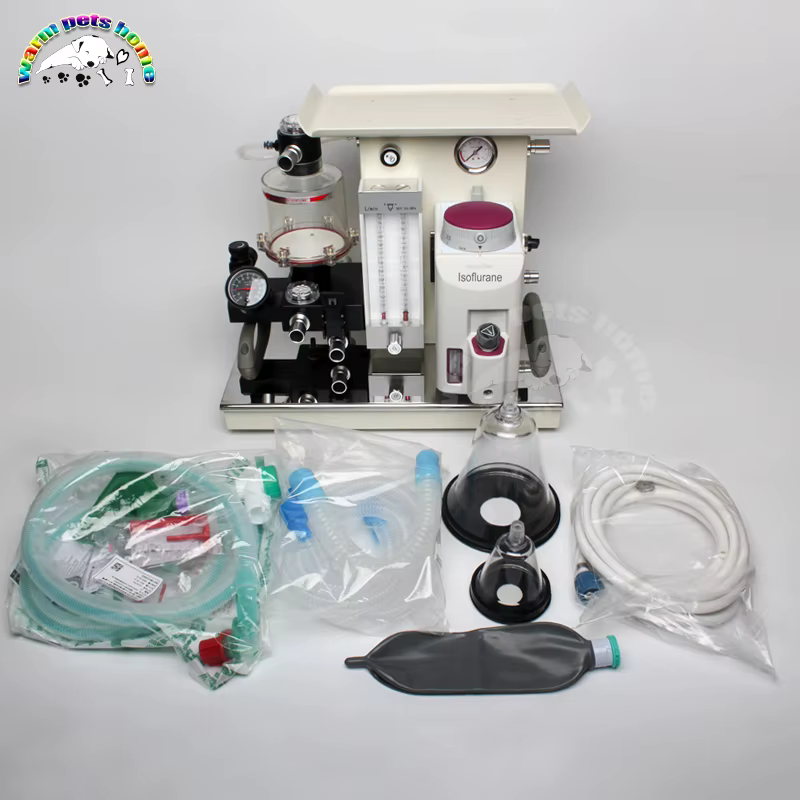

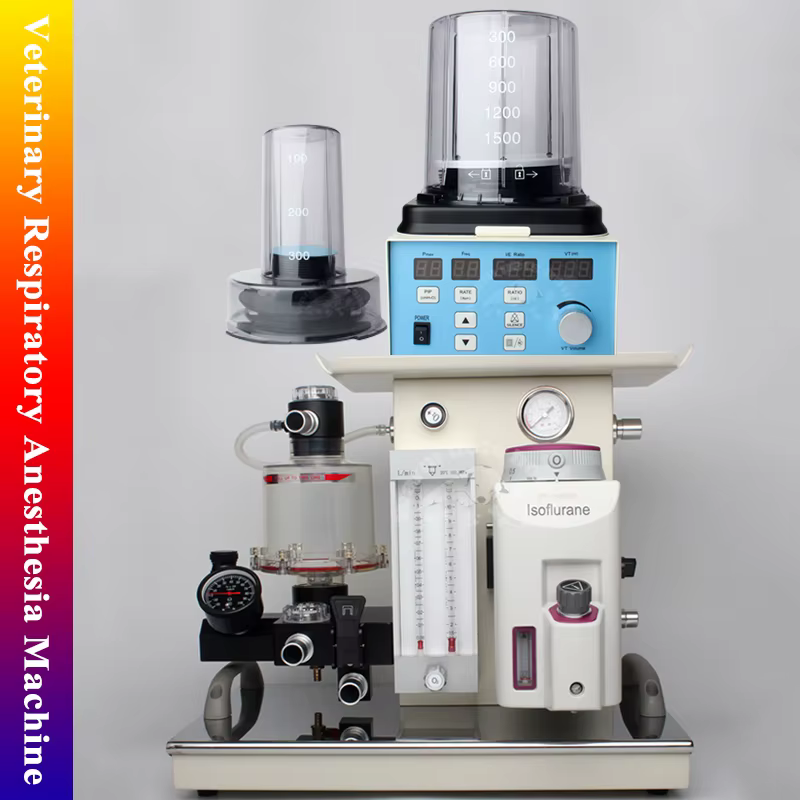

Veterinary respiratory anesthesia machine

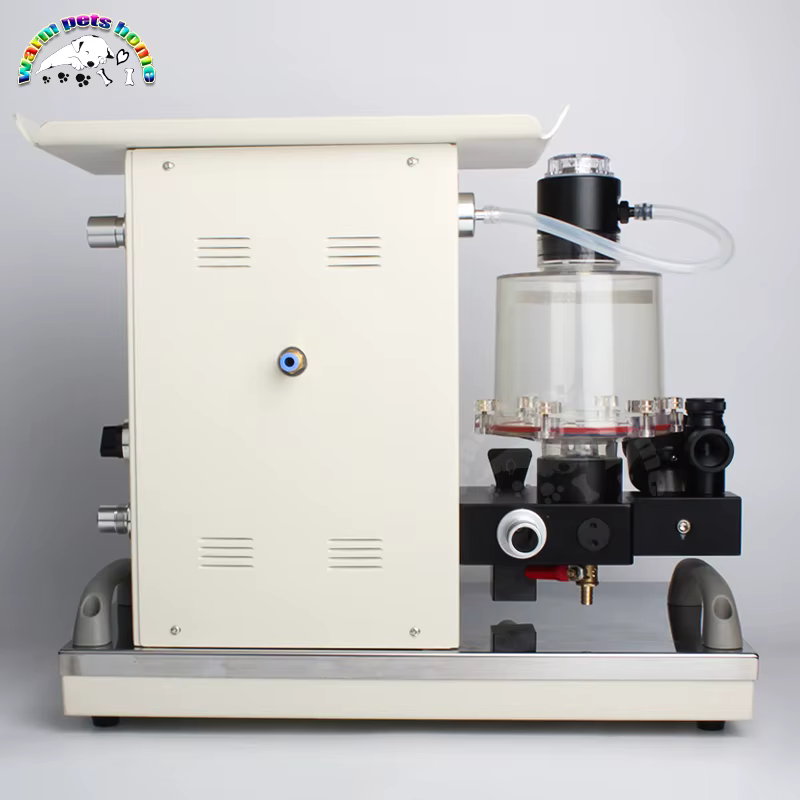

Anesthesia machine host
Breathing mode: manual, machine control (need to install optional anesthesia ventilator)
Working mode: tightly closed, semi-closed, semi-open
Scope of application: pets
Air source pressure: O2: 0.3~0.5MPa (optional N20: 0.3~0.5MPa)
Double tube flowmeter, single evaporator
Rapid oxygen supply: 25L/min~75L/min
Soda lime tank capacity: 1kg (additional 1x1kg soda lime tank can be added)
Flowmeter: (optional laughing gas NO)
O 2-Double tube flowmeter (0~1L/min, 1~10L/min)
Anesthesia respiratory system
Independent patent integrated integrated carbon dioxide soda lime tank (high temperature sterilization possible)
Evaporator: (optional high-precision large-capacity evaporator)
1 precision evaporator (halothane, enflurane, isoflurane, sevoflurane optional)
Adjustable range: 0~5%VOL
Automatic compensation function-flow compensation, pressure compensation, temperature compensation
Self-locking function

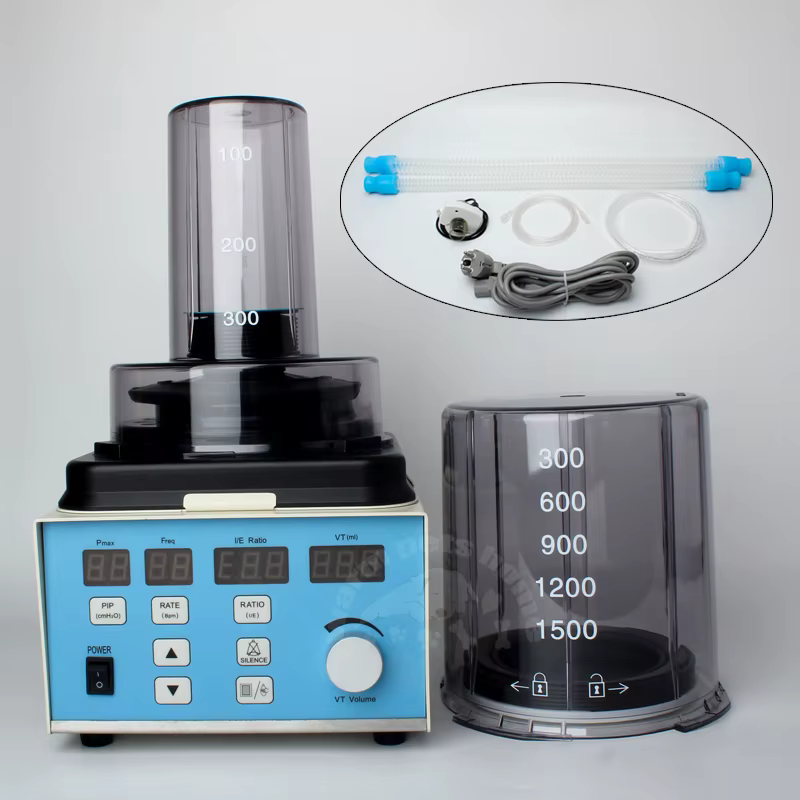

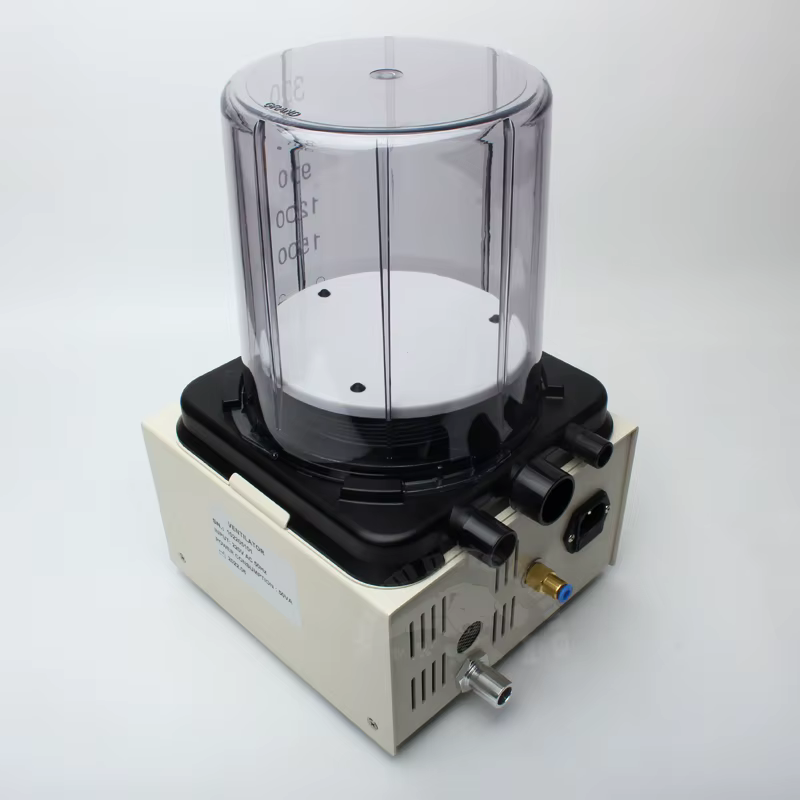

The main technical parameters of respirator：1．Freq： 4～60bpm
2．MV： 2～18L/M
3．I:E： 1:0.5～1:4ADJ
4．The gas Road safety pressure： 0.6～6KPa
5．Power： AC230V、50Hz
6．Weight： 5Kg
7．Volume： 205×219×117（mm）
